ScPovPlot3D/VectorField.inc [ Modules ]

[ Top ] [ Modules ]

PURPOSE

This module is in introductory state. It contains macros for representation of vector field in form of set of vectors symbolised by various shapes and color coding systems. Direction and strength of vector at given space point can be visualised in different ways. While direction of the vector can be shown by main axis of some figure, for example cone or cylinder, strength and turn can be represented by length or color or volume or so on. It depends mainly on the goal of visualisation. I think, that representation of vectors in single plane is most informative by now. Besides that we need superimposition of source objects, as coils, charges, permanent magnet poles or even oceanic bed if one takes into account visualisation of oceanic currents.




   Fig.[VectorField] Example of vector field generated by point charge at the center of Cartesian system rendered with this module



VERSION


  3.1.0.6, tested on PovRay 3.7.



AUTHOR


  Janusz Opiła Ph.D.



   jmo{at}agh.edu.pl, janusz.opila{at}gmail.com
   Dept. of Applied Informatics,
   https://www.facebook.com/KatedraInformatykiStosowanejWZAGH/
   http://kis.zarz.agh.edu.pl/
   AGH University of Science & Technology, Cracow, Poland http://www.zarz.agh.edu.pl/English/index.asp
   Maintained by Janusz Opiła Ph.D.
   Homepage: http://scpovplot3d.sourceforge.net





COPYRIGHT


  GNU GPL v.3 License
  (c) 2012-now by Janusz Opiła Ph.D.
  AGH University of Science and Technology







Potential.inc/DeclareStructure [ Main macros ]



[ Top ] [ Potential.inc ] [ Main macros ]


PURPOSE


  Sets internal variable _Pts, utilized by VectoCF macro for vector field computations



SYNOPSIS


#macro DeclareStructure (_Atoms)



INPUTS


  garray - structure table, see Potential.inc



OUTPUTS


  None, sets global variable



SIDE EFFECTS


  affect global variable _Pts, which is input to Potential.CreateV### Function factory macros



SEE ALSO


  VectorCF (), ComputeStreamline ()







VectorField.inc/ComputeStreamline [ Main macros ]



[ Top ] [ VectorField.inc ] [ Main macros ]


PURPOSE


  this macro computes nodes of single streamline only, for given line index _Lnum,
  using Runge-Kutta 4th order algorithm based on data provided by DeclareStructure () macro
  Radius of the streamlines is governed by internal global variable _StrmLinRadius.
  _FatCoefficient is being used by ComputeFatStreamline macro variant of ComputeStreamline. Moderates scaling of the field strength
  Until _StrmLinRadius>0 then constant value (_StrmLinRadius) is used. If opposite is true, dynamic scaling is activated.



SYNOPSIS


#macro ComputeStreamline(_P0, _Npts, _Lnum)



INPUTS


  3Dvector _P0   - 3D Start space point, units - [A]
  integer  _Npts - expected (maximum) number of nodes,
  integer  _Lnum - streamline index.



SIDE EFFECTS


  Radius of the streamlines is governed by internal global variable _StrmLinRadius.
  Radius of the streamlines may depend on field strength so scaling factor _FatCoefficient as internal global var. is required.
  Computed line is stored in global variable StrmLineTable[][][] which must be defined BEFORE macro is called.



SEE ALSO


  VectorCF, DrawStreamLines







VectorField.inc/DrawStreamLines [ Main macros ]



[ Top ] [ VectorField.inc ] [ Main macros ]


PURPOSE


  Draws streamlines based on Streamline table _SL, spline type _splt and texture _txt.
  Uses _EndingPointRad internal global variable



SYNOPSIS


#macro DrawStreamLines ( _SL, _splt, _txt )// - table, spline, texture



INPUTS


  garray     _SL   - streamlines table over N lines over N_i nodes
  integer    _splt - interpolation type: 2 - bezier spline, 3 - cubic spline, other - linear_spline
  texturedef _txt  - texture attached to ALL lines, may be simple or complex, ex. functional



SIDE EFFECTS


  Uses _EndingPointRad internal global variable, governing radius of extreme points.



SEE ALSO


  ComputeStreamline, VectorCF







VectorField.inc/VectorCF [ Main macros ]



[ Top ] [ VectorField.inc ] [ Main macros ]


PURPOSE


  computes Coulomb vector field from
  assembly of charged molecules, passed as global array _Pts[][]



SYNOPSIS


#macro VectorCF ( _rr, _sc )



INPUTS


  3Dvector _rr  - 3D space point, units - [A]
  float    _sc  - additional scaling factor, may be left _sc==1
  garray   _PTs - array[N+1][8] of charges, passed as global variable, use macro DeclareStructure (Any_Set_of_Atoms), refer Structures.inc and Potential.inc for details



OUTPUTS


  Coulomb electric field vector in [V/Angstrem], governed by "qeff" factor defined in Potential.inc file



SEE ALSO


  DrawStreamLines, ComputeStreamline, Potential.inc







VectorField.inc/DeclareVectors [ Helper macros ]



[ Top ] [ VectorField.inc ] [ Helper macros ]


PURPOSE


   calculates field using Function _VS given as parameter, in _NP^3 grid points in a cube

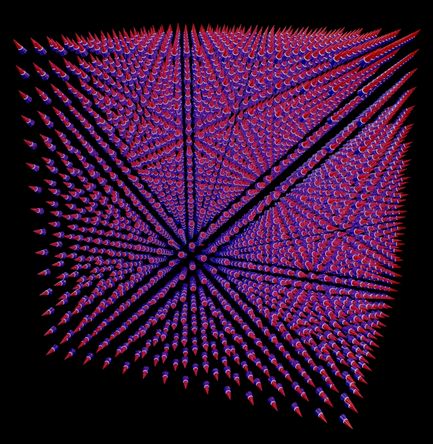

   Fig.[VectorFieldCube] Example of vector field generated by point charge at the center of Cartesian system rendered with this module over 7x7x7 3D space grid

SYNOPSIS


#macro DeclareVectors (_VS, _NP)



INPUTS


  _VS - float Function(float, float) - inline Function two float parameters, returns float
  _NP - integer - size of the grid, number of nodes along one cube edge







VectorField.inc/_Npmax, _StrmLinRadius, _EndingPointRad, _FatCoefficient, _Flux, __1byPi__ [ Variables ]



[ Top ] [ VectorField.inc ] [ Variables ]


PURPOSE


  _StrmLinRadius  - streamline body radius
  _EndingPointRad - streamline endings (spheres) diameter, internal global variable
  _FatCoefficient - used by ComputeFatStreamline macro variant of ComputeStreamline. Moderates scaling of the field strength
  _Flux           - assumed vector field flux along tubeline



SYNOPSIS


#declare _Npmax = 1;
#declare _StrmLinRadius  = 0.03; // streamline body radius, if == '0', _FatCoefficient is used for variable diameter streamlines.
#declare _EndingPointRad = 0.05; // streamline endings (spheres) diameter, internal global variable
#declare _Flux           = 1.00; // vextor field flux, expressed in adopted in the job units, eg. [T*m^2], [V*angstroem], and so on.
#declare _FatCoefficient = 1.00; // used by ComputeStreamline. Additional scaling of the fluxline diameter, for use with
                                 // derivative units like V->kV, A/m=>kA/m;
#declare __1byPi__       = 1.0/sqrt(pi); // remove? - constant coefficient for fluxlines;



SEE ALSO


  One should also refer to:



   None
