./Plot3Dv4/Plot3Dv4/LinearPlots.inc

1. ScPovPlot3D/LinearPlots.inc
2. Linearplots.inc/DrawBSplineWires()
3. Linearplots.inc/DrawCubicWires()
4. Linearplots.inc/DrawLinearWires()
5. Linearplots.inc/DrawNodePoints()
6. Linearplots.inc/DrawWireFrameRC(), DrawWireFrame()
7. Linearplots.inc/DrawWireFrameXY()
8. Linearplots.inc/ImportDataRC()
9. Linearplots.inc/ImportDataXY()
10. Linearplots.inc/AddColDescr()
11. Linearplots.inc/AddRowDescr()
12. Linearplots.inc/DrawColDscr()
13. Linearplots.inc/DrawRowDscr()
14. Linearplots.inc/DrawVrtDescr()
15. Linearplots.inc/InitDscrColAxe()
16. Linearplots.inc/InitDscrRowAxe()
17. Linearplots.inc/SetBgPicture()
18. Linearplots.inc/SetColor()
19. Linearplots.inc/SetDscrAngle()
20. Linearplots.inc/SetInterior()
21. Linearplots.inc/SetLettrBase()
22. Linearplots.inc/SetLettrDepth()
23. Linearplots.inc/SetLettrSize()
24. Linearplots.inc/SetMaterial()
25. Linearplots.inc/SetNodeRadiiCoeff(Coeff)
26. Linearplots.inc/SetTexture()
27. Linearplots.inc/SetWireRadiiCoeff(Coeff)
28. Linearplots.inc/TurnPhotonsDown(), TurnPhotonsUp()
29. Linearplots.inc/DeclareLevel

ScPovPlot3D/LinearPlots.inc [ Modules ]

PURPOSE

Macros for representation of 3D linear plots of scatter 2D data ie. y=f(x).

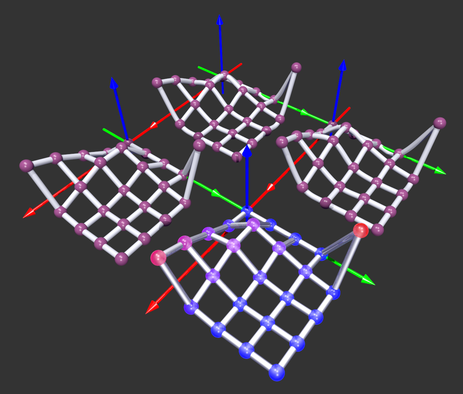

   Fig.[WireFrame] Linear (twice), Cubic and BSpline interpolation

     *********************************************************
     **   Tested on PovRay 3.7                              **
     **   License: GNU GPL                                  **
     **   Homepage:    http://scpovplot3d.sourceforge.net   **
     *********************************************************
     **   version: 3.0.6 (& have a nice time ;)             **
     *********************************************************


AUTHOR
  Janusz Opiła Ph.D.

   jmo@agh.edu.pl, janusz.opila@gmail.com
   Dept. of Applied Informatics
   AGH University of Science & Technology, Cracow, Poland
   Maintained by Janusz Opiła Ph.D.


COPYRIGHT
  GNU GPL v.3 License
  (c) 2012-now by Janusz Opiła Ph.D.
  AGH University of Science and Technology




Linearplots.inc/DrawBSplineWires() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
  Draws surface representation in the form of grid of LINEAR splines, ie. straight cuts of line

SYNOPSIS
DrawBSplineWires(float _wireR, boolean _Sphrs)

INPUTS
  _wireR - float   = radii of the wire
  _Sphrs - boolean = draw spheres in place of nodes? yes/no

SEE ALSO
  ImportDataRC()
  ImportDataXY()
  DrawNodePoints()
  DrawLinearWires()
  DrawCubicWires()




Linearplots.inc/DrawCubicWires() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
  Draws surface representation in the form of grid of LINEAR splines, ie. straight cuts of line

SYNOPSIS
DrawCubicWires(float _wireR, boolean _Sphrs)

INPUTS
  _wireR - float   = radii of the wire
  _Sphrs - boolean = draw spheres in place of nodes? yes/no

SEE ALSO
  ImportDataRC()
  ImportDataXY()
  DrawNodePoints()
  DrawLinearWires()
  DrawBSplineWires()




Linearplots.inc/DrawLinearWires() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
  Draws surface representation in the form of grid of LINEAR splines, ie. straight cuts of line

SYNOPSIS
DrawLinearWires(float _wireR, boolean _Sphrs)

INPUTS
  _wireR  - float   = radii of the wire
  _Sphrs  - boolean = draw spheres in place of nodes? yes/no

SEE ALSO
  ImportDataRC()
  ImportDataXY()
  DrawNodePoints()
  DrawCubicWires(),
  DrawBSplineWires()




Linearplots.inc/DrawNodePoints() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
  Draws grid data points as ellipsoids ie. spheres scaled along vertical axis
  by _scl factor. If _scl equals 1 one obtains pure sphere, however it can be lower or bigger than 1
  This macro is designed to visualize uncertainty at given grid point

SYNOPSIS
DrawNodePoints(float _scl)

INPUTS
  _scl - scaling factor along vertical axis, not perpendicularly to the surface!
  this is intended for representation of uncertainty of the data (SD? SEM?)




Linearplots.inc/DrawWireFrameRC(), DrawWireFrame() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
   Draws representation od data from input file as wireframed 3D surface.
   Input data is organized as a matrix of floats separated by commas.
   This macro is intendend for visualisation of matrices thus "RC" suffix (Row/Column).
   macro DrawWireFrame(DataFileName) is just backward compatibility wrapper

SYNOPSIS
DrawWireFrameRC(string filename DataFileName)

INPUTS
   DataFileName - valid name of file with data - see example file for details
   of its structure. Generally speaking first is Column axis title, Row Yaxis title,
   number of columns, then min and max value assigned to the first and last item in row,
   number of rows, then min and max value assigned to the first and last item in column,
   eventually numeric data in form of matrix, ie. data measured, observed or
   calculated over the grid

SEE ALSO
   DrawWireFrameYX()

SOURCE
/// #macro DrawWireFrameRC(DataFileName) is intendend for visualisation of matrices
/// interpretation of structure of input file (r=Row, c=Column):
///  * -----> Column ---->
///  |  r1c1 r1c2 r1c3 r1c3
///  |  r2c1
///  |  r3c1...
///  V  r4c1..
/// Rows
///  ie. rows are treated as rows of the matrix so they are drawn
///  along PovRAY X  axis (which is Y in REAL coords).




Linearplots.inc/DrawWireFrameXY() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
   Draws representation od data from input file as wireframed 3D surface.
   Input data is organized as a matrix of floats separated by commas.
   This macro is intendend for visualisation of gridded data thus "YX" suffix.

SYNOPSIS
DrawWireFrameXY(string filename DataFileName)

INPUTS
   DataFileName - valid name of file with data - see example file for details
   of its structure. Generally speaking first is Xaxis title, Yaxis title,
   number of columns, then min and max value assigned to the items in first and last X column respectively (along POVRay X axis),
   number of rows, then min and max value assigned to the items in first and last row respectively (along POVRay -Z axis),
   eventually numeric data in form of matrix, ie. data measured, observed or
   calculated over the real XY grid

SOURCE
/// interpretation of structure of input file:
///  * -----> X ---->
///  |  x1y1 x1y2 x1y3 x1y3
///  |  x2y1
/// Y|  x3y1...
///  V  X4y1..
///  ie. rows are treated as x-data so they are drawn
///  along REAL X  axis (which is -Z in PovRAY coords) ,




Linearplots.inc/ImportDataRC() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
   Imports only data from input file.
   Input data is organized as a matrix of floats separated by commas.
   This macro is part of visualisation suite of matrices thus "RC" suffix (Row/Column).

SYNOPSIS
ImportDataRC(string filename DataFileName)

INPUTS
   DataFileName - valid name of file with data - see example file for details
   of its structure. Generally speaking first is Column axis title, Row Yaxis title,
   number of columns, then min and max value assigned to the first and last item in row,
   number of rows, then min and max value assigned to the first and last item in column,
   eventually numeric data in form of matrix, ie. data measured, observed or
   calculated over the grid

SOURCE
/// structure  of the grid is interpreted as follows:
///  * -----> Col ---->
/// R|  r1c1 r1c2 r1c3 r1c4
/// o|  r2c1
/// w|  r3c1...
///  V  r4c1..
///  ie. rows are treated as x-data so they are drawn along REAL X axis (PovRAY '-Z')




Linearplots.inc/ImportDataXY() [ Main macros ]

[ Top ] [ Main macros ]
PURPOSE
   Imports representation od data from input file.
   Input data is organized as a matrix of floats separated by commas.
   This macro is intendend for visualisation of gridded data thus "YX" suffix.

SYNOPSIS
ImportDataXY(string filename DataFileName)

INPUTS
   DataFileName - valid name of file with data - see example file for details
   of its structure. Generally speaking first is Xaxis title, Yaxis title,
   number of columns, then min and max value assigned to the items in first and last X column respectively (along POVRay X axis),
   number of rows, then min and max value assigned to the items in first and last row respectively (along POVRay -Z axis),
   eventually numeric data in form of matrix, ie. data measured, observed or
   calculated over the real XY grid

SOURCE
/// structure  of the grid is interpreted as follows:
///  * -----> X real axis ---->
///  |  x1y1 x2y1 x3y1 x4y1
///  |  x1y2
/// Y|  x1y3...
///  V  X1y4..
///  ie. rows are treated as x-data so they are drawn
///  along REAL X  axis /-Z in PovRAY coords/ ,




Linearplots.inc/AddColDescr() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Inserts into horizontal axis data block new major label

SYNOPSIS
AddColDescr(string Dscr)

INPUTS
   Dscr - label ("1", "A" or so on..)




Linearplots.inc/AddRowDescr() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Inserts into 2nd horizontal axis data block new major label

SYNOPSIS
AddRowDescr(string Dscr)

INPUTS
   Dscr - label ("1", "A" or so on..)




Linearplots.inc/DrawColDscr() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Inserts into rendering stack description of horizontal axis

SYNOPSIS
DrawColDscr(texturedef _Txtr, float _LettrBase, float _LettrSize, float _LettrDepth)

INPUTS
   _Txtr       - texture definition
   _LettrBase  - adjustment to the position of description
   _LettrSize  - Size of characters in description Text
   _LettrDepth - thickness of characters in description Text




Linearplots.inc/DrawRowDscr() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Inserts into rendering stack description of 2nd horizontal axis

SYNOPSIS
DrawRowDscr(texturedef _Txtr, float _LettrBase, float _LettrSize, float _LettrDepth)

INPUTS
   _Txtr       - texture definition
   _LettrBase  - adjustment to the position of description
   _LettrSize  - Size of characters in description Text
   _LettrDepth - thickness of characters in description Text




Linearplots.inc/DrawVrtDescr() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Draws automatically vertical axis description,

SYNOPSIS
DrawVrtDescr(uinteger _NVrt, texturedef _Texture)

INPUTS
   _NVrt - number of major tics
   _Texture - texture identifier




Linearplots.inc/InitDscrColAxe() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Initializes description data block along horizontal axis (columns)

SYNOPSIS
InitDscrColAxe(uinteger N)

INPUTS
   N - number of categories




Linearplots.inc/InitDscrRowAxe() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Initializes description data block along horizontal axis (rows)

SYNOPSIS
InitDscrRowAxe(uinteger N)

INPUTS
   N - number of categories




Linearplots.inc/SetBgPicture() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets picture for the background of coords system
   Will be moved to CoordsSys.inc

SYNOPSIS
SetBgPicture(string filename Pct)




Linearplots.inc/SetColor() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets default color for different items:

   SetColor( color vector FullColour )

   SetRGBColor( float R, float G, float B) - for RGB definition style

   SetRGBFTColor( float R, float G, float B, float F, float T) for RGBFT definition

   SetRGBFTColor_1( float R, float G, float B, float F, float T) and

   SetRGBFTColor_2( float R, float G, float B, float F, float T)  two-color RGBFT items






Linearplots.inc/SetDscrAngle() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets base angle of description of axes (category labels)

SYNOPSIS
SetDscrAngle(float)




Linearplots.inc/SetInterior() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   declares texure for the item

SYNOPSIS
SetInterior( interiordef tInt )




Linearplots.inc/SetLettrBase() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets base position of letters in description of axes

SYNOPSIS
SetLettrBase(float ls)




Linearplots.inc/SetLettrDepth() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets size of letters in description of axes

SYNOPSIS
SetLettrDepth(float ls)




Linearplots.inc/SetLettrSize() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets size of letters in description of axes

SYNOPSIS
SetLettrSize(float ls)




Linearplots.inc/SetMaterial() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   declares material for the item

SYNOPSIS
SetMaterial( materialdef FullMaterial )




Linearplots.inc/SetNodeRadiiCoeff(Coeff) [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   declares radius coefficient for the wire and nodes

SYNOPSIS
SetNodeRadiiCoeff(float Coeff)




Linearplots.inc/SetTexture() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   declares texure for the item

SYNOPSIS
SetTexture( texturedef FullTexture )




Linearplots.inc/SetWireRadiiCoeff(Coeff) [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   declares radius coefficient for the wire only

SYNOPSIS
SetWireRadiiCoeff(float Coeff)




Linearplots.inc/TurnPhotonsDown(), TurnPhotonsUp() [ Helper macros ]

[ Top ] [ Helper macros ]
PURPOSE
   Sets internal variable Photons to 'no' or 'yes'
   ie turns photon mechanism 'off' or 'on'

SYNOPSIS
TurnPhotonsUp()
TurnPhotonsDown()




Linearplots.inc/DeclareLevel [ Variables ]

[ Top ] [ Variables ]
PURPOSE
   DeclareLevel determines what is defined:

   0 = colour only

   2 = also texture

   4 = complete material


   this value is valid until next "Set...()" declaration is met
 SOURCE */

TABLE OF CONTENTS

ScPovPlot3D/LinearPlots.inc [ Modules ]

Linearplots.inc/DrawBSplineWires() [ Main macros ]

Linearplots.inc/DrawCubicWires() [ Main macros ]

Linearplots.inc/DrawLinearWires() [ Main macros ]

Linearplots.inc/DrawNodePoints() [ Main macros ]

Linearplots.inc/DrawWireFrameRC(), DrawWireFrame() [ Main macros ]

Linearplots.inc/DrawWireFrameXY() [ Main macros ]

Linearplots.inc/ImportDataRC() [ Main macros ]

Linearplots.inc/ImportDataXY() [ Main macros ]

Linearplots.inc/AddColDescr() [ Helper macros ]

Linearplots.inc/AddRowDescr() [ Helper macros ]

Linearplots.inc/DrawColDscr() [ Helper macros ]

Linearplots.inc/DrawRowDscr() [ Helper macros ]

Linearplots.inc/DrawVrtDescr() [ Helper macros ]

Linearplots.inc/InitDscrColAxe() [ Helper macros ]

Linearplots.inc/InitDscrRowAxe() [ Helper macros ]

Linearplots.inc/SetBgPicture() [ Helper macros ]

Linearplots.inc/SetColor() [ Helper macros ]

Linearplots.inc/SetDscrAngle() [ Helper macros ]

Linearplots.inc/SetInterior() [ Helper macros ]

Linearplots.inc/SetLettrBase() [ Helper macros ]

Linearplots.inc/SetLettrDepth() [ Helper macros ]

Linearplots.inc/SetLettrSize() [ Helper macros ]

Linearplots.inc/SetMaterial() [ Helper macros ]

Linearplots.inc/SetNodeRadiiCoeff(Coeff) [ Helper macros ]

Linearplots.inc/SetTexture() [ Helper macros ]

Linearplots.inc/SetWireRadiiCoeff(Coeff) [ Helper macros ]

Linearplots.inc/TurnPhotonsDown(), TurnPhotonsUp() [ Helper macros ]

Linearplots.inc/DeclareLevel [ Variables ]
