ScPovPlot3D/BoxWhisk.inc [ Modules ]

[ Top ] [ Modules ]

PURPOSE

Old. well known macro for drawing 3D Box & Whiskers plot




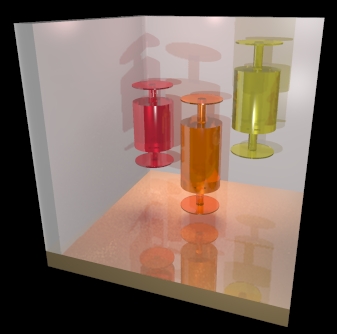

   Fig.[BoxWhisk] Box & whiskers plots
   There is a lot TODO: some automation and so on





     *********************************************************
     **   Tested on PovRay 3.7                              **
     **   License: GNU GPL                                  **
     **   Homepage:    http://scpovplot3d.sourceforge.net   **
     *********************************************************
     **   version: 3.0.6 (& have a nice time ;)             **
     *********************************************************





AUTHOR


  Janusz Opiła Ph.D.



   jmo@agh.edu.pl, janusz.opila@gmail.com
   Dept. of Applied Informatics
   AGH University of Science & Technology, Cracow, Poland
   Maintained by Janusz Opiła Ph.D.





COPYRIGHT


  GNU GPL v.3 License
  (c) 2012-now by Janusz Opiła Ph.D.
  AGH University of Science and Technology







BoxWhisk.inc/AddBoxWhisker() [ Main macros ]



[ Top ] [ BoxWhisk.inc ] [ Main macros ]


PURPOSE


  Adds final barrel to the chart and sets several parameters



SYNOPSIS


AddBoxWhisker(Y0, Y1, Mid, Rad, Tex)



INPUTS


  Barrel is created centered on z=0 then moved vertically to 'Mid' value
  Y0  - barrel vertical size  (ex. median, )
  Y1  - plates position (ex. confidence range)
  Mid - value for the center (ex. mean)
  Rad - radius of the barrel
  Tex - identifier of valid texture



SEE ALSO


  Buble()
  BoxWhisk()







BoxWhisk.inc/AddBasePlates() [ Helper macros ]



[ Top ] [ BoxWhisk.inc ] [ Helper macros ]


PURPOSE


  Adds coord system stub



SYNOPSIS


AddBasePlates(D)



INPUTS


  D - width of coord system plates



SEE ALSO


  CoordSys.inc







BoxWhisk.inc/AddPlates() [ Helper macros ]



[ Top ] [ BoxWhisk.inc ] [ Helper macros ]


PURPOSE


  Adds coord system stub



SYNOPSIS


AddBasePlates(_D, _T, _I)



INPUTS


  _D - width of coord system plates



SEE ALSO


  CoordSys.inc







BoxWhisk.inc/BoxAndWhisk() [ Helper macros ]



[ Top ] [ BoxWhisk.inc ] [ Helper macros ]


PURPOSE


  Draws single barrel with plates



SYNOPSIS


BoxAndWhisk(Y0, Y1, Rad)



INPUTS


  Barrel is created centered on z=0
  Y0 - barrel vertical size  (ex. median, )
  Y1 - plates position (ex. confidence range)
  Rad - radius of the barrel



SEE ALSO


  Buble()
  AddBoxWhisker()







BoxWhisk.inc/Buble() [ Helper macros ]



[ Top ] [ BoxWhisk.inc ] [ Helper macros ]


PURPOSE


  Draws sphere as a hole in center of the barrel



SYNOPSIS


Buble(X0, Y0, Z0, R)



INPUTS


  X0, Y0, Z0 - center of the sphere
  R - radius



SEE ALSO


  BoxAndWhisk()
